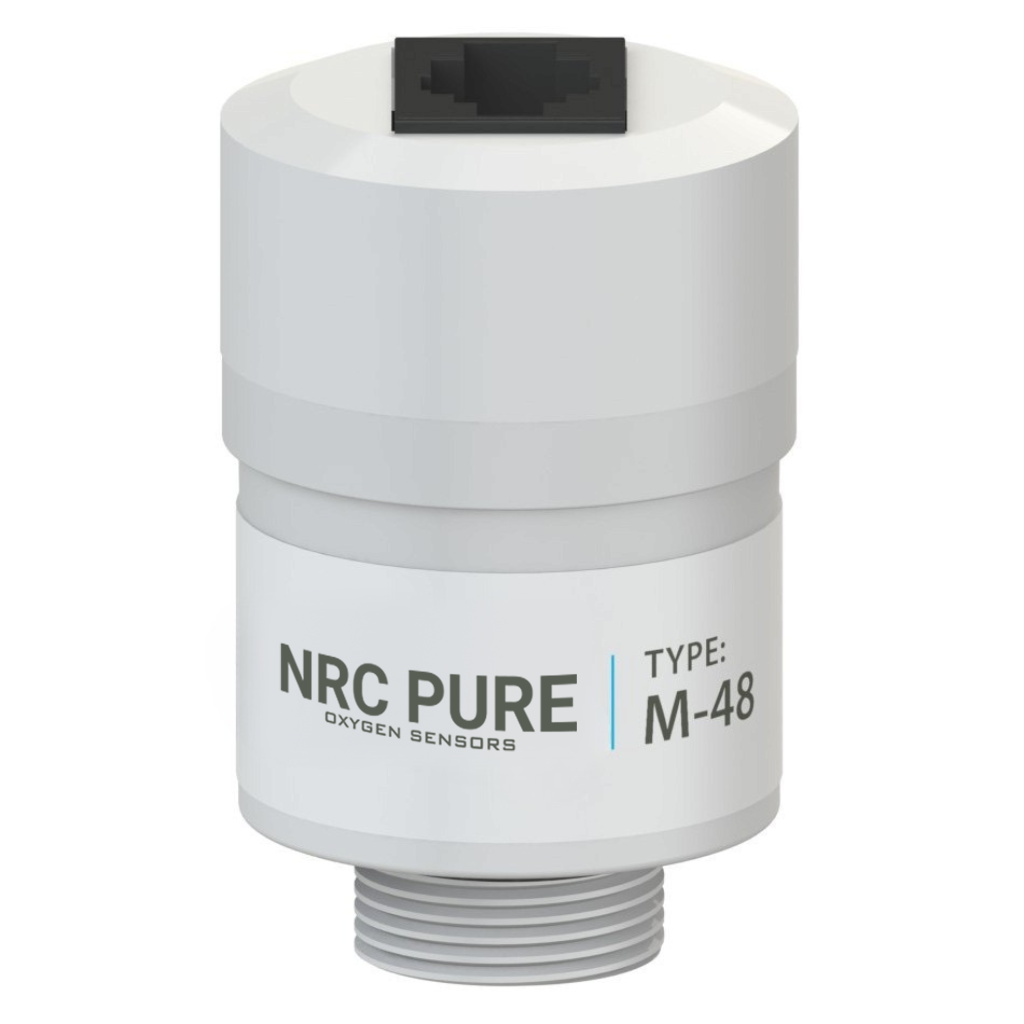

M-48 Medical Oxygen Sensor

Electrochemical O₂ Sensor for Accurate Clinical Gas Monitoring

The M-48 Medical Oxygen Sensor is a high-performance electrochemical sensor built for use in oxygen monitors, ventilators, and anesthesia devices. Engineered for stability, speed, and accuracy, the M-48 provides consistent signal output and is optimized for integration into clinical oxygen measurement systems requiring reliable and efficient sensor performance.

Technical Specifications:

• Sensor Type: Electrochemical oxygen sensor
• Calibration: One-point calibration required
• Expected Lifetime: 1,000,000 %O₂ hours
• Operating Temperature Range: 0 °C to +50 °C
• Storage Temperature Range: -20 °C to +50 °C
• Operating Humidity Range: 0 to 99 %RH (non-condensing)
• Response Time (T90): <15 seconds
• Measurement Range: 0 to 100 %O₂
• Signal Output: 9.0 to 13.0 mV in air
• Connector Type: 3-pin Molex®
• Cable: Shielded cable with Molex® connector
• Dimensions: 30 mm diameter x 21 mm height
• Weight: 27 g

Device Compatibility:

The M-48 sensor is suitable for medical devices requiring electrochemical O₂ sensing via a 3-pin Molex® connector, including ventilators and anesthesia machines.

The M-48 Medical Oxygen Sensor supports devices including IT-Gambert® M-48 and Maxtec® Max-48.

Key Features:

• Full oxygen measurement range from 0 to 100 %
• Fast response time under 15 seconds
• Long operating life and stable performance
• Easy one-point calibration
• Reliable 3-pin Molex® connection with shielded cable
• Compact design for seamless system integration
• Consistent signal output across environmental conditions
