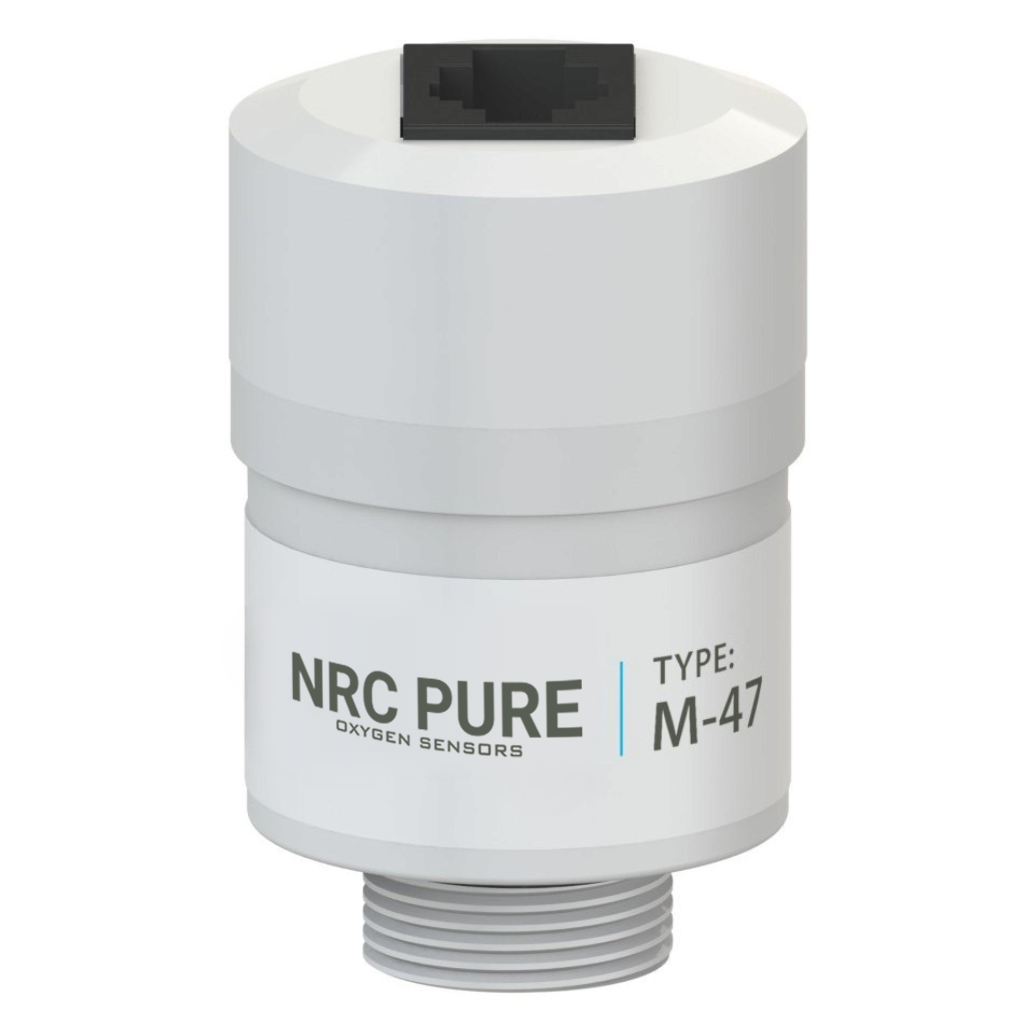

M-47 Medical Oxygen Sensor

Electrochemical O₂ Sensor for Ventilation and Anesthesia Equipment

The M-47 Medical Oxygen Sensor is a dependable electrochemical sensor engineered for precise oxygen concentration measurement in clinical and medical gas monitoring systems. With a rapid response time and stable signal performance, the M-47 is ideal for integration into ventilators, anesthesia machines, and oxygen analyzers.

Technical Specifications:

• Sensor Type: Electrochemical oxygen sensor
• Calibration: One-point calibration required
• Expected Lifetime: 1,000,000 %O₂ hours
• Operating Temperature Range: 0 °C to +50 °C
• Storage Temperature Range: -20 °C to +50 °C
• Operating Humidity Range: 0 to 99 %RH (non-condensing)
• Response Time (T90): <15 seconds
• Measurement Range: 0 to 100 %O₂
• Signal Output: 9.0 to 13.0 mV in air
• Connector Type: 3-pin Molex®
• Cable: Shielded cable with Molex® connector
• Dimensions: 30 mm diameter x 21 mm height
• Weight: 27 g

Device Compatibility:

The M-47 sensor is suitable for use in various medical and clinical oxygen delivery and monitoring systems that require 3-pin Molex® connection and high signal accuracy.

The M-47 Medical Oxygen Sensor supports devices including Hudson® 5800, 5801, 5803, IT-Gambert® M-47 and Maxtec® Max-47.

Key Features:

• Accurate full-range oxygen detection (0 to 100 %)
• Quick response with T90 < 15 seconds
• Long-life operation with consistent signal output
• Compact form factor for easy integration
• One-point calibration for straightforward maintenance
• Shielded cable with secure 3-pin Molex® connector
• Reliable in diverse environmental conditions
