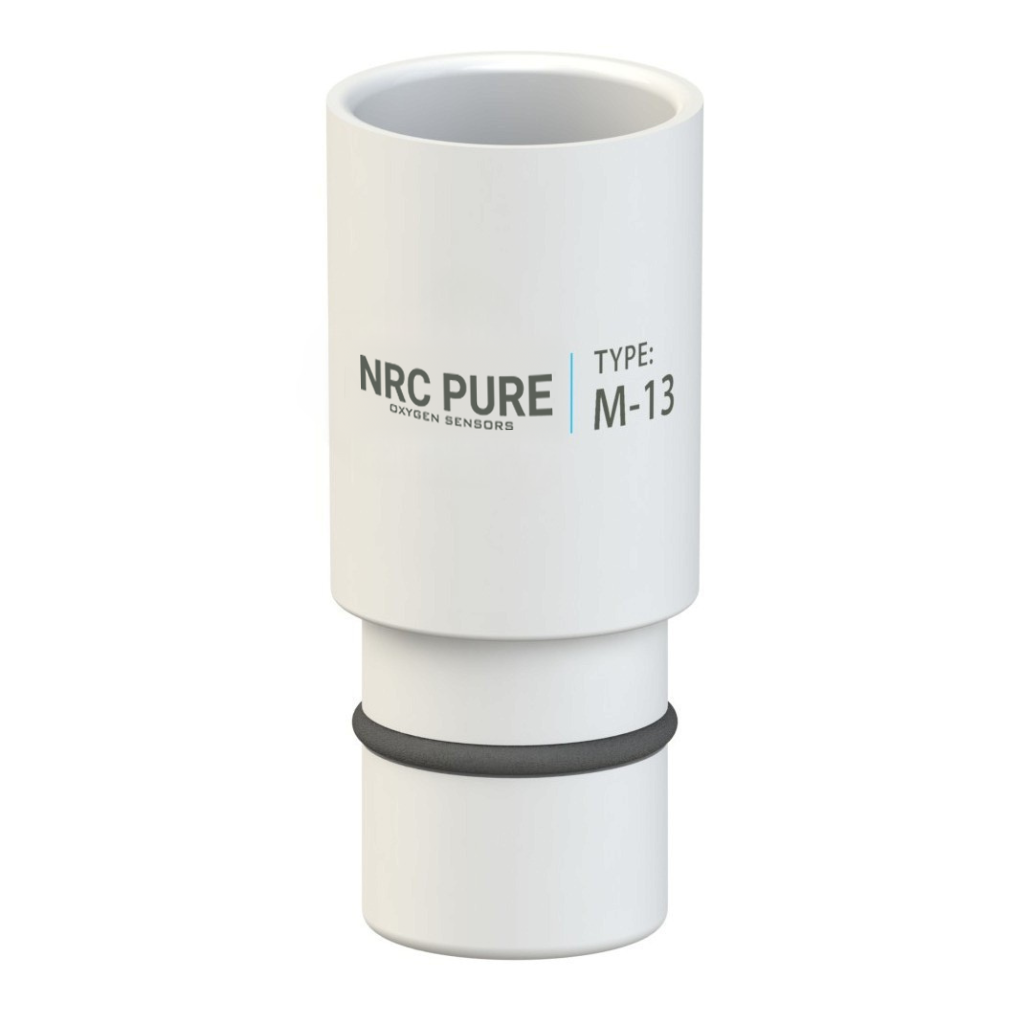

M-13 Medical Oxygen Sensor

Electrochemical O₂ Sensor for Medical Ventilators and Monitoring Devices

The M-13 Medical Oxygen Sensor is a high-precision electrochemical sensor designed for accurate oxygen concentration measurement in clinical environments. Suitable for use in ventilators, anesthesia machines, and oxygen monitors, the M-13 delivers stable output and supports one-point calibration, ensuring dependable performance throughout its operational life.

Technical Specifications:

• Sensor Type: Electrochemical oxygen sensor
• Calibration: One-point calibration required
• Expected Lifetime: 1,000,000 %O₂ hours
• Operating Temperature Range: 0 °C to +50 °C
• Storage Temperature Range: -20 °C to +50 °C
• Operating Humidity Range: 0 to 99 %RH (non-condensing)
• Response Time (T90): <15 seconds
• Measurement Range: 0 to 100 %O₂
• Signal Output: 9.0 to 13.0 mV in air
• Connector Type: 3-pin Molex®
• Cable: Shielded cable with Molex® connector
• Dimensions: 30 mm diameter x 21 mm height
• Weight: 27 g

Device Compatibility:

The M-13 sensor integrates with various medical respiratory and monitoring systems that utilize a standard 3-pin Molex® connection and require precise electrochemical oxygen measurement.

The M-13 Medical Oxygen Sensor supports a range of devices including Airshields® (Dräger) 6736140 and Hudson® models 5500, V-05, 5557, 6477, 5590, 5595, and 5584. It is also compatible with IT-Gambert® M-13, Maxtec® Max-9, and MSA® (Catalyst Research) 655265.

Additional supported systems include Teledyne® R13MED and Ventronix® models 5500, 5570, 5575, 5584, 5590, and 5595.

Key Features:

• Accurate O₂ detection from 0 to 100 %
• Stable and consistent signal output
• Fast response time under 15 seconds
• Extended service life with low maintenance
• Simple one-point calibration
• Shielded cable and secure Molex® connector
• Compact and lightweight design
