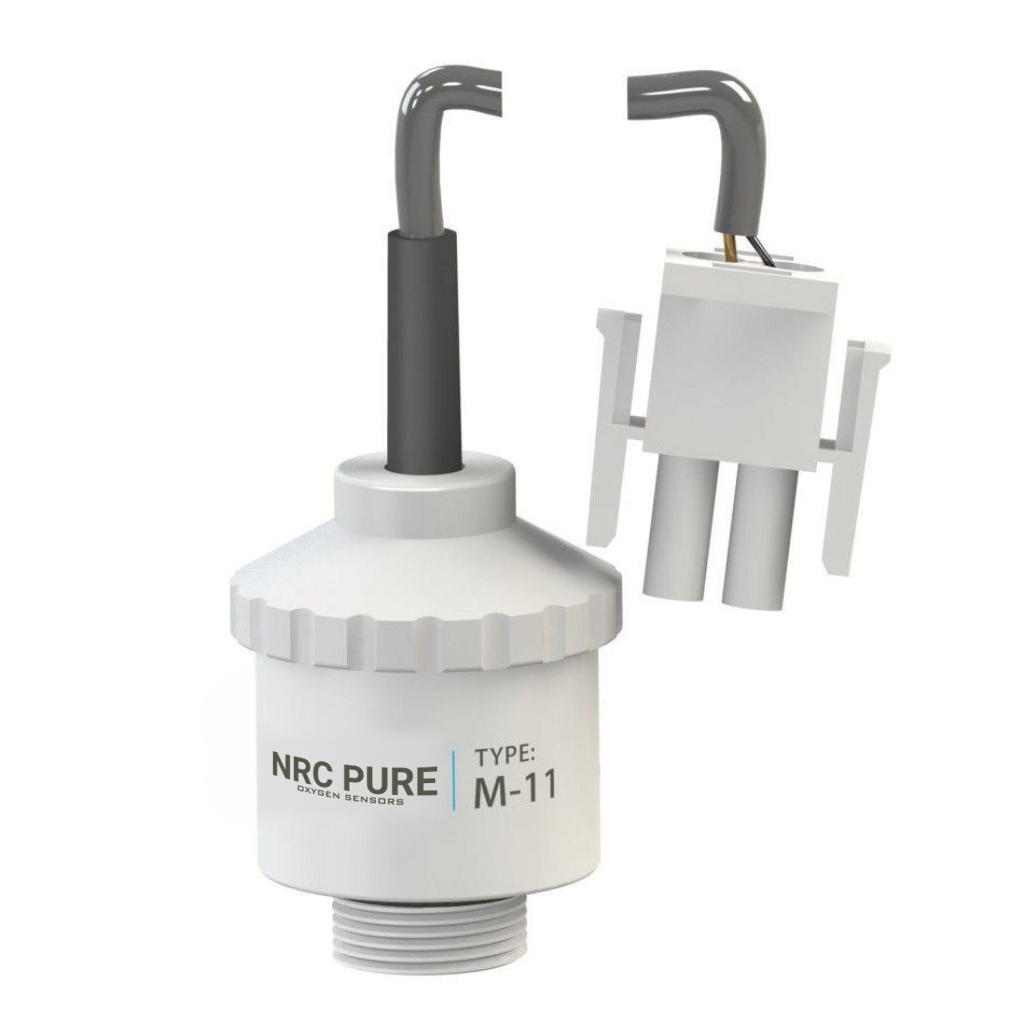

M-11 Medical Oxygen Sensor

Electrochemical O₂ Sensor for Clinical Respiratory Equipment

The M-11 Medical Oxygen Sensor is a precision electrochemical sensor designed for measuring oxygen concentration in medical ventilators, anesthesia systems, and oxygen monitoring devices. Engineered for stability and durability, the M-11 supports one-point calibration and delivers consistent performance under various clinical operating conditions.

Technical Specifications:

• Sensor Type: Electrochemical oxygen sensor
• Calibration: One-point calibration required
• Expected Lifetime: 1,000,000 %O2 hours
• Operating Temperature Range: 0 °C to +50 °C
• Storage Temperature Range: -20 °C to +50 °C
• Operating Humidity Range: 0 to 99 %RH (non-condensing)
• Response Time (T90): <15 seconds
• Measurement Range: 0 to 100 %O2
• Signal Output: 9.0 to 13.0 mV in air
• Connector Type: 3-pin Molex
• Cable: Shielded cable with Molex connector
• Dimensions: 30 mm diameter x 21 mm height
• Weight: 27 g



Device Compatibility:

The M-11 is compatible with medical-grade respiratory equipment that utilizes 3-pin Molex sensors, meeting the technical standards for oxygen monitoring across clinical environments.

The M-11 Medical Oxygen Sensor supports a wide range of devices including City Technologies® MOX-10, EnviteC® OOM202-S, F. Stephan® Allia (M-11) Stefanie and IT-Gambert® M-11.

Key Features:

• Full-range oxygen measurement from 0 to 100 %O2
• Rapid response time (T90 < 15 seconds)
• Long operational life with stable signal output
• Broad compatibility with ventilators and monitoring systems
• Compact and lightweight for easy integration
• 3-pin Molex connector with shielded cable
• Reliable signal performance with minimal calibration needs
