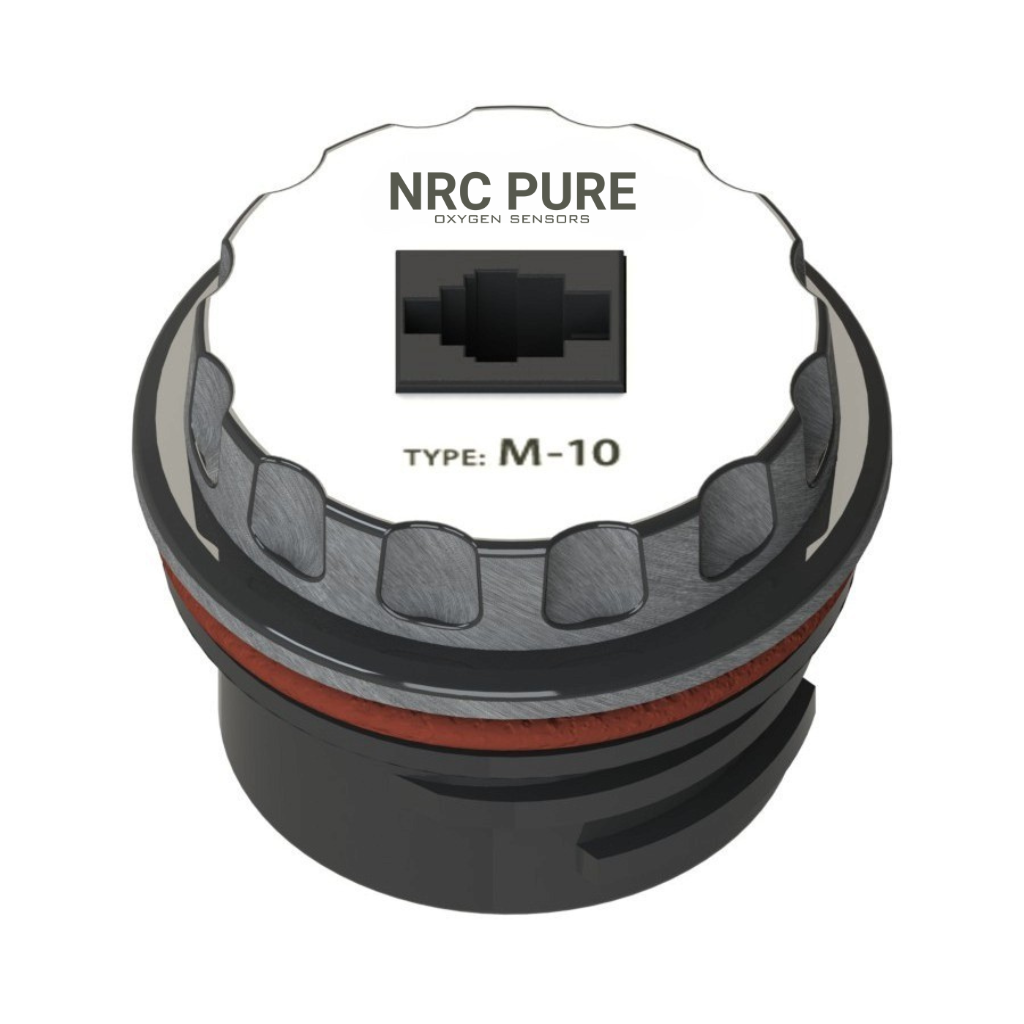

M-10 Medical Oxygen Sensor

High-Stability O₂ Sensor with Modular 6P4C Connector

The M-10 Medical Oxygen Sensor is an electrochemical sensor designed for precise oxygen concentration measurement in medical and clinical environments. Featuring high signal stability, low interference from anesthesia gases, and superior linearity, the M-10 is equipped with a 6P4C modular jack and supports a wide temperature and pressure operating range. This sensor is suitable for applications requiring continuous oxygen monitoring with reliable performance.

Technical Specifications:

• Sensor Type: Electrochemical oxygen sensor
• Measurement Range: 0 to 100 Vol.% O₂
• Initial Output Signal: 8.0 to 12.0 mV in dry ambient air
• Response Time (T90): < 16 seconds
• Expected Operating Life: > 750,000 Vol.% O₂ hours
• Sensor Lifetime: > 3 years in ambient air, application dependent
• Drift: < 1 Vol.% O₂/month in air, averaged over 12 months
• Static Temperature Error:
• • < ± 1.5 % at 20–40 °C
• • < -3 % at 15–20 °C
• • < -8 % at 10–15 °C
• Linearity Error: ≤ ± 3 % at 100 Vol.% O₂ (5-minute exposure)
• Zero Offset Voltage: ≤ 0.3 Vol.% O₂ at 100 % N₂ (5-minute exposure)
• Repeatability: ± 1 % Vol. O₂ at 100 Vol.% O₂ (5-minute exposure)
• Operating Temperature Range: 10 to 40 °C
• Recommended Temperature Range: 10 to 30 °C
• Maximum Temperature: 40 to 50 °C (max 1 week), -15 to 50 °C (absolute)
• Pressure Range: 650 to 1250 hPa
• Humidity Range: Up to 100 % RH, non-condensing
• Influence of Humidity: -0.03 % relative O₂ reading per % RH
• Electrical Connector: Modular jack 6P4C
• Recommended Load Resistor: ≥ 10 kOhm
• Temperature Compensation: NTC
• Material in Contact with Media: PTFE, ABS, Silicone, Krytox
• Weight: Approximately 52 g
• Shelf Life: < 6 months recommended



Device Compatibility:

The M-10 is suitable for oxygen monitoring systems that support modular 6P4C connectors and require stable, high-accuracy measurement across a wide environmental range.

The M-10 Medical Oxygen Sensor supports a wide range of devices including EnviteC® OOM110, IT-Gambert® M-10, Maxtec® Max-10, Ohmeda® (GE®)    Oxygen sensor 6050-004-110, Smart Vent 7900, 7100 Oxygen sensor 6050-004-110.

Further compatibility extends to Ventilator, Modulus SE,    Oxygen sensor 6050-004-110, S-5 Espire, Avance,    Oxygen sensor 6050-004-110 and Aestva, 3000/5, Aespira Oxygen sensor 6050-004-110 and Teledyne® R30MED and Ventrex® V-20A.

Key Features:

• High stability and low cross-interference with anesthesia gases
• Full-scale oxygen detection from 0 to 100 Vol.%
• NTC-based temperature compensation
• Stable signal with minimal drift and error
• Fast T90 response under 16 seconds
• Modular 6P4C connector for secure integration
• Black housing (Part No. 41 00 14), also available in 50-unit packaging (Part No. 41 04 14)

Download the M-10 Complete Specifications Sheet

Download the M-10 Material Safety Data Sheet
