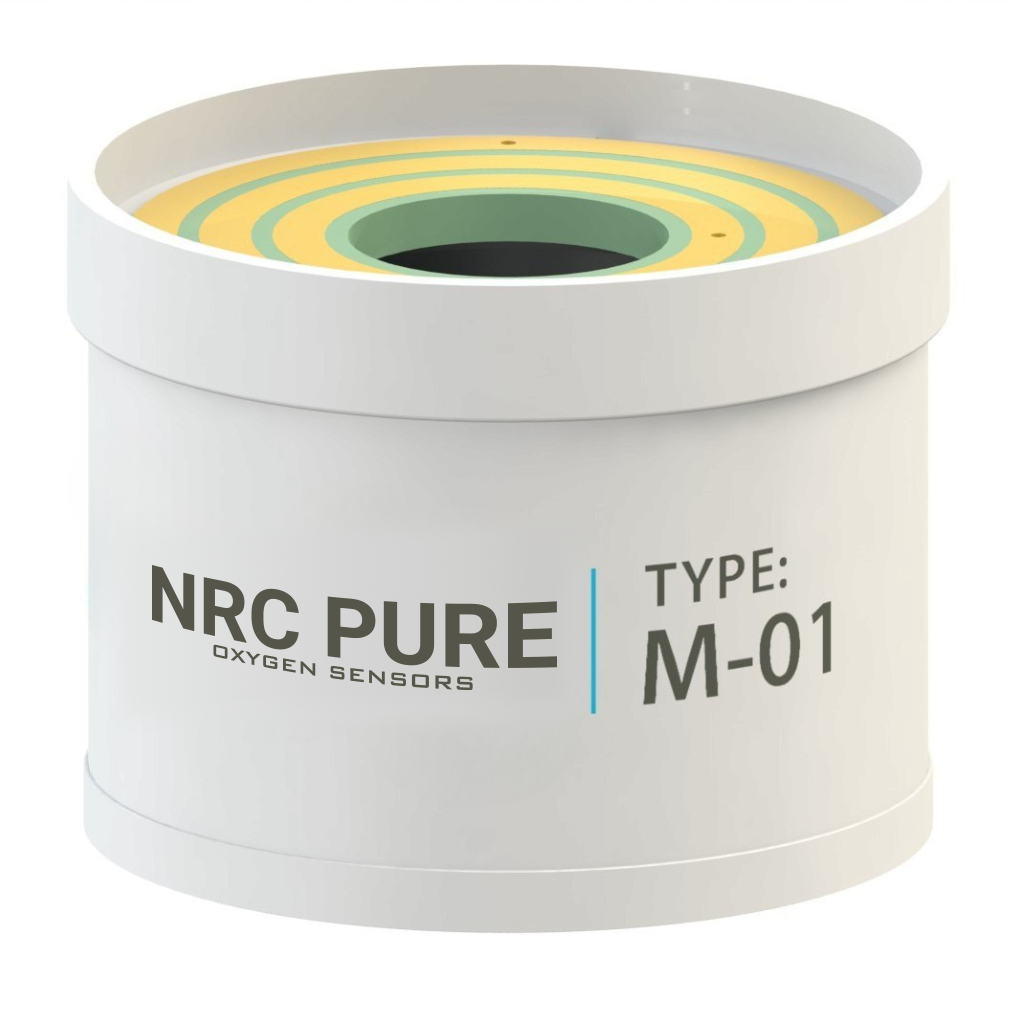

M-01 Medical Oxygen Sensor

Electrochemical O₂ Sensor for Clinical Ventilators and Monitoring Equipment

The M-01 Medical Oxygen Sensor is a precision electrochemical sensor engineered for accurate oxygen concentration measurement in medical environments. Designed for use in ventilators, anesthesia equipment, and oxygen monitors, it delivers stable performance and supports routine one-point calibration. The M-01 is a direct replacement sensor for compatible devices requiring a high-accuracy, durable oxygen measuring cell.

Technical Specifications:

• Sensor Type: Electrochemical oxygen sensor
• Calibration: One-point calibration required
• Expected Lifetime: 1,000,000 %O2 hours
• Operating Temperature Range: 0 °C to +50 °C
• Storage Temperature Range: -20 °C to +50 °C
• Operating Humidity Range: 0 to 99 %RH (non-condensing)
• Response Time (T90): <15 seconds
• Measurement Range: 0 to 100 %O2
• Signal Output: 9.0 to 13.0 mV in air
• Connector Type: 3-pin Molex
• Cable: Shielded cable with Molex connector
• Dimensions: 30 mm diameter x 21 mm height
• Weight: 27 g



Device Compatibility:

Download Device Compatibility Table Here

The M-01 sensor is designed for clinical oxygen monitoring systems that require a 3-pin Molex interface, offering reliable performance and seamless integration across a diverse range of ventilators, anesthesia machines, and oxygen analyzers.

The M-01 Medical Oxygen Sensor supports a wide range of devices including BREAS® (GE®) models (Nippy 4, 4+, Nippy 45LS, Vivo 45), City Technologies® MOX-06, Draeger® 6803290, and EnviteC® systems (OxiQuant RM, OOM101). Compatibility also extends to F. Stephan® OOM101, Hamilton® HM-10, Hewlett Packard® 15201-1A, Hudson® 5556, and IT-Gambert® models (M-15, M-01).

Additional supported devices include Maxtec® Max-1, MEDEC® (Belgium) Saturn EVO and Tronic Flow, MSA® (Catalyst Research) 655264 and 655263, Ohmeda® (GE®) systems (Exel Modulus 4700, Oxycap 5100, 5250, 5400, 5120/5, 7800, 7810, and sensor 0237-2034-700), as well as Paragon Services® PS-1000.

The sensor also integrates with Teledyne® models (C-41131 R15, R15MED), Vascular Technology® devices (100352, 101272), and Viasys® (CAREFUSION®) systems (6400, 8400, VIP Ventilator Sensor P/N 60030). Full compatibility includes VTI® models VT1272, 101272, and 100352.

Key Features:

• Fast response time (T90 <15 seconds)
• Wide operating and storage temperature range
• High humidity tolerance (0 to 99 %RH)
• Durable with a long operational lifetime
• Shielded cable and standard connector for reliable integration
• Precision measurement across full oxygen range (0 to 100 %O2)
• Minimal calibration required with consistent output signal

Download the M-01 Complete Specifications Sheet

Download the M-01 Material Safety Data Sheet
